Buy Foil Drive
2 Box Systems each with 2 Battery capacities
and all with a 24 months warranty
Mounted: Between the board and your mast plate.
Standard delivery with 20 cm cable: 5 cm Box-height plus 20 cm cable -> the motor can be monted 22 - 24 cm distance under the board. You want less or more distance: Order these extra cables: 12, 15, 25, 60, 70 cm
Battery
40V 12,6 Ah 499 Wh 2,65 kg
Weight complete 4,5 kg
Power 1,4 kW
Battery
40V 8,4 Ah 333 Wh 1,85 kg
Weight complete 3,4 kg
Power 1,38 kW
Best for
- small and large lakes, Lake Garda
- for learning, training, giving courses
- As a safty-system with small boards and foils: For Wing-, Windsurf-, Downwind-SUP- and Wake-Foiler
- For touring-foilers, who want long runtime, to remain capacity for a safe return.
Standard delivery with 20 cm cable: 5 cm Box-height plus 20 cm cable -> the motor can be monted 22 - 24 cm distance under the board. You want less or more distance: Order these extra cables: 12, 15, 25, 60, 70 cm
-
Assist Max Power € 5.699,-
standard with motor cable 20 cm
free shipping
Battery
40V 12,6 Ah 499 Wh 2,65 kg
Weight complete 4,5 kg
Power 1,4 kW
-
Assist Max Sport € 5.399,-
standard with motor cable&bsp;20&bsp;cm
free shipping
Battery
40V 8,4 Ah 333 Wh 1,85 kg
Weight complete 3,4 kg
Power 1,38 kW
Best for
- small and large lakes, Lake Garda
- for learning, training, giving courses
- As a safty-system with small boards and foils: For Wing-, Windsurf-, Downwind-SUP- and Wake-Foiler
- For touring-foilers, who want long runtime, to remain capacity for a safe return.
Mounted: Between the board and your mast plate.
Standard delivery with 20 cm cable: 5 cm Box-height plus 20 cm cable -> the motor can be monted 22 - 24 cm distance under the board.
You want less or more distance: Order these extra cables: 12, 15, 25, 60, 70 cm
Battery
28,8 V 8,4 Ah 242 Wh 1,4 kg
Weight complete 2,8 kg
Power 1,34 kW
Battery
40 V 4,2 Ah 166 Wh 1,0 kg
Weight complete 2,3 kg
Power 1,34 kW
Best for
- the sea and ocean
- on small and large lakes: for foil experts and riders below 70 kg. All who have focus on a very light and powerful system: Assist Slim Performance
Standard delivery with 20 cm cable: 5 cm Box-height plus 20 cm cable -> the motor can be monted 22 - 24 cm distance under the board.
You want less or more distance: Order these extra cables: 12, 15, 25, 60, 70 cm
-
free shipping
Battery
28,8 V 8,4 Ah 242 Wh 1,4 kg
Weight complete 2,8 kg
Power 1,34 kW
-
Assist
Slim Performance € 4.839,-
free shipping
Battery
40 V 4,2 Ah 166 Wh 1,0 kg
Weight complete 2,3 kg
Power 1,34 kW
Best for
- the sea and ocean
- on small and large lakes: for foil experts and riders below 70 kg. All who have focus on a very light and powerful system: Assist Slim Performance
Foil Drive App
Ultimate ride optimisation to suit your needs!
Gen2 Foil Drive systems have the ability to connect to your device and modify the way you ride. With features like Boost Mode, varied Power Modes and other Advanced Settings, this app will continue to evolve into your one stop spot!
Example Power Modes
- Low 1,25 kW
- Medium 1,37 kW
- Learn 1,38 kW
- High 1,40 kW
Available for iPhone (iOS 13+) and Android (version 12+)
Gen2 Foil Drive systems have the ability to connect to your device and modify the way you ride. With features like Boost Mode, varied Power Modes and other Advanced Settings, this app will continue to evolve into your one stop spot!
Example Power Modes
- Low 1,25 kW
- Medium 1,37 kW
- Learn 1,38 kW
- High 1,40 kW
Alle MAX- und SLIM-Systeme verwenden den gleichen Motor mit 2-Blatt-Propeller
-476f469a.webp)
-
Set price with 500 Wh battery (Power) € 5.699,-
with 333 Wh battery (Sport) € 5.399,-
free shipping
-
Set price with 500 Wh battery (Power) € 5.699,-
with 333 Wh battery (Sport) € 5.399,-
free shipping
![]()
Complete system
with motor, mast adapter
and 333 Wh battery
long runtime
45 - 60 min just efoiling and little pumping
1,5 / 2,5 hrs. efoiling with mostly pumping or wave riding
-
free shipping
-
-
-
Motor cable length 20 cm
Together with 5 cm electronicbox your motor is perfectly mounted 20 -25 cm below the board.
-
Set Preis € 4.839,-
Free shipping
![]()
Complete system
with motor, mast adapter
and 166 Wh battery
Lightest system
just 2,6 kg (complete with motor)
and a good thrust of 1,34 kW
For riders below 70 kg und foiling experts
-
Free shipping
-
-
-
Motor cable lenght 20 cm
In addition to 3 cm electronicbox your motor is perfectly mounted 18 - 23 cm below your board.
How to order?
Order with Foilriders Shop or send us your needs via Mail and describe your use case.
After this we acknowledge your order and you will get an invoice. Then you send the amount via bank transfer.
Warranty and exchange will be handled by Foilriders. Accessories and spare parts are regulary in stock.
Please send us your inquiry
to +49 179 5 33 44 23 (whatsapp, signal, iMessage, sms)
or via Mail ...
Assist Max Power
complete system include
Motor with 2 Blade-Propeller,
20 cm cable length
* Select your mast adapter: Tell us exactly what mast you got.
500 Wh Battery with lipo bag.
40 V Standard Foil Drive Charger 4 A
Foil Drive Assist MAX Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod - Rear
Foil Drive Universal Motor Pod - Short Nose
Foil Drive Universal Motor Pod - Long Nose
Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
4x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Fett
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case
...
Foil Drive assembly bolt bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts
- 2x M3 x 16mm Latch Locking Bolts
Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)
Spare part bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 2x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
Technical data
Max Thrust: 27,5kg (60.6lbs)
Motor-Power: 1,37 kW
System-Weight: 4,5kg (9.9lbs)
Electronics box with 500 Wh battery: L525 x W125 x H50 mm
Foil Drive App für Android and iOS
Consulting
You want to tweak to lightest quiver with Foil Drive?
There is a 1,1 kg lighter battery for the Assist Max (just 3,4 kg total weight, Sport battery 333 Wh)
Focused on foil experts and riders below 69 kg the Assist Slim is the best choice: just 2,3 kg total weight with 166 Wh battery.
Another topic is at which position should I mount the motor. This defines the cable length which you need to order.
You see there are some considerations to be made about how you want to ride and how you should set Foil Drive to your area of application.
We are looking forward to consulting you and preparing just the perfect Foil Drive system for you.

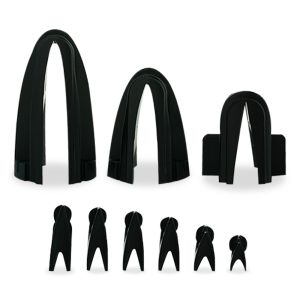

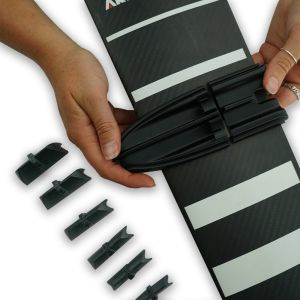

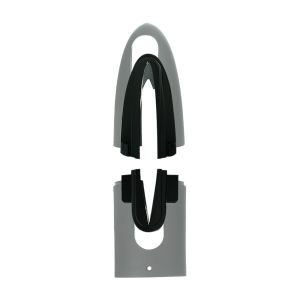

Universal Mast Adapter
Foil Drive adapter system one fits all.
Foil Drive envolved the mast adapter: Universal Mast Adapter.
Now it fits to all masts. A new, simple and convincing system let you mount your motor to any mast at any hight. Thanks to a flexible material and adapter "keys" the system is variable and very strong. Available now at Foilriders.de
"Universal Mast Adapter" contains the flexible inside of the pod. The adapter pod has been and is delivered with every Foil Drive set. Just the inside changed and envolved. Most important: It can be mounted very strong on every mastposition.
foiling
.
